Model No. |
PHTV-320 |
|
Video Section |
|
|
PC Resolution Supporting |
VGA, SVGA, XGA (Auto Convert To WVGA) |
|
HDTV Compatible |
480i, 480p, 720p, 1080i |
|
Progressive Scanning |
Yes |
|
Film Mode Pull Down Conversion |
Yes |
|
GAMMA Correction |
Yes |
|
Color Temperature Control |
Yes |
|
Comb Filter |
Yes - 3D Comb Filter |
|
Wide Mode |
7 modes |
|
TV System |
NTSC M, ATSC, QAM |
|
DUAL TUNER System |
NTSC /8 VSB |
|
AV Input Color System |
NTSC3.58, NTSC4.43 |
|
PIP /POP |
No |
|
Audio Section |
|
|
Audio Output Power (Internal 10% THD) |
5W x 2 |
|
Sound Mode |
Yes |
|
User EQ |
Yes |
|
Tone Control |
Yes |
|
Input Terminals |
|
|
|
RF in x 1(F Tuner) |
|
D-Sub 15Pin x 1(Analog RGB Input) |
|
HDMI Connector x 1 |
|
Component Video-YPbPr x 1(RCA Terminals) |
|
Video Input x 2(RCA Terminals) |
|
S-Video Input x 2(Mini Din 4Pin Terminals) |
|
Audio Input for Video /S-Video x 2(RCA
Terminals) |
|
Audio Input for HDMI/RGB/YPbPr x 1(RCA
Terminals) |
|
Front Video/Audio Input x 1set (RCA
Terminals) |
|
Output Terminals |
|
|
|
SPDIF (OPTICAL) x 1 (For DTV) |
|
Video/Audio Output (RCA Type) x 1set |
|
Other Terminals |
|
|
|
USB for Software Update x 1 |
|
Others |
|
|
HDCP Compatible |
Option |
|
Closed Caption /V-Chip |
Yes |
|
OSD Language |
English /French /Spanish |
|
Stereo Decode |
BTSC (MTS) |
|
Power Rating |
AC 100-240V 60Hz |
|
Control Function |
|
|
Brightness Control |
Yes |
|
Contrast Control |
Yes |
|
Color Control |
Yes |
|
Sharpness Control |
Yes |
|
Color Temperature Control |
Yes |
|
Preset Picture Mode |
Yes |
|
Volume Control |
Yes |
|
Treble Control |
Yes |
|
Bass Control |
Yes |
|
Balance Control |
Yes |
|
Preset Audio Mode |
Yes |
|
RF Reception |
|
|
Terrestrial ATSC |
Yes |
|
Input Frequency |
55 MHz ~ 858 MHz |
|
Input Impendence |
75 Ohm F-Type |
|
Bandwidth |
6 MHz |
|
Modulation Type |
8VSB / QAM |
|
Video |
|
|
Algorithm |
MPEG-2 compatible MP@HL /MP@ML support |
|
Decoding format |
ATSC 18 formats |
|
Audio |
|
|
Algorithm |
AC-3, MPEG-1/2 layer 1 and 2 |
|
Sample Rate |
32 /44.1 /48KHz |
|
A/V Output |
|
|
HDTV Analog Component Video output |
Resolution: 1366 x 768 fixed |
|
Audio Output I/F |
SPDIF (Optical); Stereo (Lt, Rt) |
|
Digital Audio Output(SPDIF) |
Dolby Digital, PCM |
|
V-Chip (Parental Control) |
|
|
V-chip (EIA-766-A) |
Yes |
|
Closed Caption |
|
|
Digital CC (EIA-608-A /EIA-708-B) |
Yes |
|
EPG, Other GUI |
|
|
Direct channel change |
Yes (Not support ATSC DCC) |
|
Supported Languages |
English /French /Spanish |
|
Channel Information Banner |
Yes |
|
Channel banner |
Yes |
|
Real-time signal strength display |
Yes |
|
Auto channel scan |
Yes |
|
Channel Editing |
Option |
|
Freeze frame |
Option |
|
Real-time signal strength display |
Yes |
|
OSD Transparency setting |
Option |
|
Time zone setting |
Yes |
|
Favorite Channel |
Option |
|
Container Loading |
|
|
Dimensions (D*W*H) mm |
1040.0 x
119.0 x 630.0 |
|
Weight
(kg) |
36.0 |

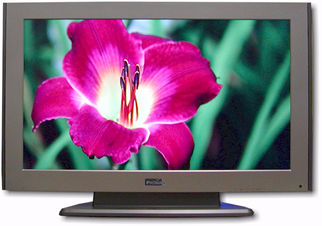

32"
Widescreen LCD Screen
