ePVision - The Internet Digital Video Specialty Store Part Number: EC-HDMIS2P



Unit Cost: $18.75


Back to previous page.

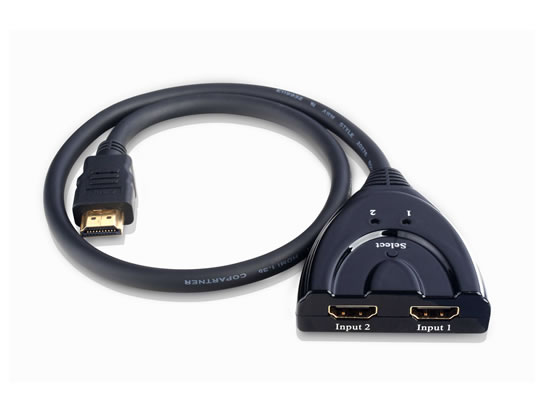

Features for All-in-One Pigtail type HDMI 2x1 Switcher :


n Support 12-bit Deep Color.

n 24K gold plated connector

n High performance up to 2.5Gbps

n Multifunctional on switching : auto detect or mechanical

n Maintains high resolution video up to 1080p,
and computer resolutions up to 1920 x 1200

n HDMI pass-through

n HDCP pass-through


Signal Inputs/Output



Input Video Signal

0.5-1.0 volts p-p

Input DDC Signal

5 volts p-p (TTL)

Maximum Single Link Range

1920X1200, 1080P

Output Video

HDMI + HDCP

Video format supported



DTV/HDTV

480i/576i/480p/576p/720p/1080i/1080P

Digital Signal I/O



HDMI Compliance

HDMI

Operating Frequency



Video Amplifier Bandwidth

1.65Gpbs/165MHz

Vertical Frequency Range

50/60Hz

Resolutions (HDTV)



Interlaced(50&60Hz)

480i,576i,1080i

Progressive(50&60Hz)

480p,576p,720p,1080p

Environmental



Operating Temperature

0 ℃ to +70℃

Operating Humidity

10% to 85 % RH (no condensation)

Storage Temperature

-10℃ to +80℃

Storage Humidity

5% to 90 % RH (no condensation)

Power Requirement



External Power Supply

No power needed
